How to Build an ngrok Alternative: Creating a Tunnel with Rust and Yamux
Creating Network Tunnels in Rust with Yamux Multiplexer
Technical Abstract
Network tunneling is a critical component in modern distributed systems, allowing for secure and efficient communication between network endpoints. This technical guide explores implementing a network tunnel in Rust using Yamux (Yet Another Multiplexer), focusing on the implementation from the provided codebase that enables multiple logical streams over a single connection. We'll examine how the codebase implements robust tunneling with TLS support, protocol handlers, and efficient stream management.
Prerequisites:
- Rust 1.75.0 or later
- Basic understanding of network programming
- Familiarity with async Rust
- Cargo package manager
Technical Highlights
- Implementation of bidirectional multiplexed tunnels using Yamux
- Async/await based network programming with Tokio
- TLS support with SNI-based routing
- Protocol handlers for TCP, TLS, and HTTP(S)
- Comprehensive error handling and connection recovery
Core Content Structure

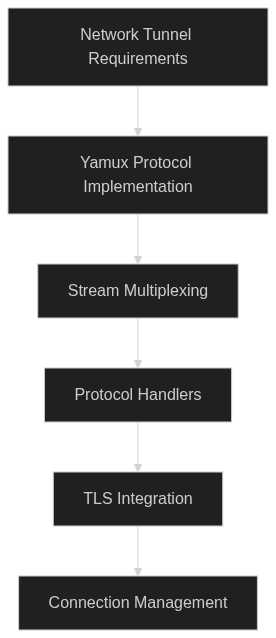

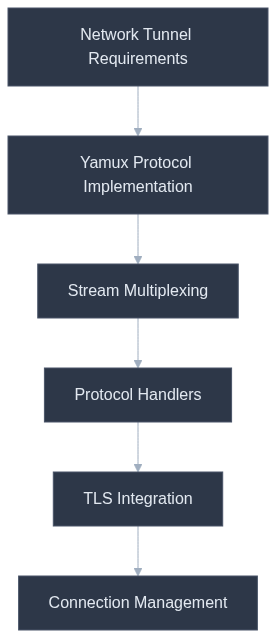

Technical Overview

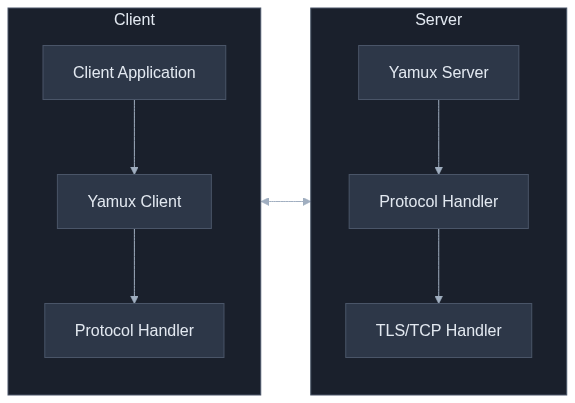

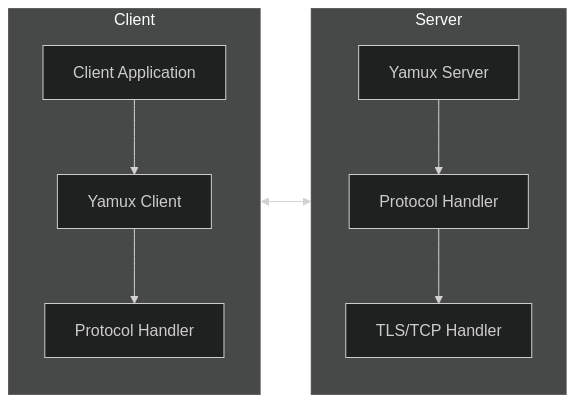

System Architecture
Implementation Details
First, let's look at the project dependencies from the codebase:
[package]
name = "tunnel"
version = "0.1.0"
edition = "2021"
[dependencies]
tokio = { version = "=1.38", features = ["full"] }
log = "0.4.22"
yamux = "0.13.3"
tokio-util = { version = "0.7.12", features = ["compat", "codec"] }
futures = { version = "0.3.30", features = ["async-await"] }
tokio-yamux = "0.3.8"
anyhow = "1.0.89"
The core Yamux implementation in the codebase:
use std::sync::Arc;
use tokio::net::TcpStream;
use yamux::{Config, Connection, Mode};
pub struct YamuxListener<H> {
address: String,
protocol_handler: Arc<H>,
}
impl<H> YamuxListener<H>
where
H: ProtocolHandler,
{
pub fn new(address: String, protocol_handler: Arc<H>) -> Self {
Self {
address,
protocol_handler,
}
}
pub async fn run(&self) -> anyhow::Result<()> {
let listener = TcpListener::bind(&self.address).await?;
info!("Yamux Listener started on {}", self.address);
loop {
let (socket, addr) = listener.accept().await?;
let protocol_handler = self.protocol_handler.clone();
tokio::spawn(async move {
let yamux = multiplexing::Yamux::upgrade_connection(
socket,
multiplexing::ConnectionDirection::Outbound,
)?;
let yamux_control = yamux.get_yamux_control().clone();
let mut incoming = yamux.into_incoming();
if let Err(e) = protocol_handler
.initialize(yamux_control.clone(), &mut incoming)
.await
{
error!("Error during protocol initialization: {}", e);
return;
}
});
}
}
}
Component Breakdown
The codebase implements several key components:
- Yamux Connection Management:
src/multiplexing/yamux.rs
/// Upgrade the underlying socket to use yamux
pub fn upgrade_connection<TSocket>(
socket: TSocket,
direction: crate::multiplexing::direction::ConnectionDirection,
) -> io::Result<Self>
where
TSocket: AsyncRead + AsyncWrite + Send + Sync + Unpin + 'static,
{
let mode = match direction {
crate::multiplexing::direction::ConnectionDirection::Inbound => Mode::Server,
crate::multiplexing::direction::ConnectionDirection::Outbound => Mode::Client,
};
let config = yamux::Config::default();
let substream_counter = AtomicRefCounter::new();
let connection = yamux::Connection::new(socket.compat(), config, mode);
let (control, incoming) =
Self::spawn_incoming_stream_worker(connection, substream_counter.clone());
Ok(Self {
control,
incoming,
substream_counter,
})
}
- Protocol Handlers:
src/handlers.rs
// Individual handler for each TLS connection
pub struct TlsConnectionHandler {
mux_control: Control,
pub domains: Vec<String>,
}
impl TlsConnectionHandler {
pub fn new(mux_control: Control, domains: Vec<String>) -> Self {
Self {
mux_control,
domains,
}
}
}
#[async_trait]
impl TlsHandler for TlsConnectionHandler {
fn domains(&self) -> &Vec<String> {
&self.domains
}
fn needs_handshake(&self) -> bool {
false
}
async fn handle_socket(
&self,
mut stream: Box<dyn AsyncReadWrite + Unpin + Send>,
_domain: String,
) -> anyhow::Result<()> {
// Handle the stream without TLS handshake
let mut yamux_stream = self.mux_control.clone().open_stream().await?;
let stream_id = StreamId::generate();
let control_packet = ControlPacket::Stream(stream_id);
yamux_stream.write_all(&control_packet.serialize()).await?;
yamux_stream.flush().await?;
tokio::spawn(async move {
match tokio::io::copy_bidirectional(&mut stream, &mut yamux_stream).await {
Ok(_) => {
debug!("Stream closed normally");
}
Err(ref e) if e.kind() == std::io::ErrorKind::ConnectionReset => {
debug!("Connection reset by peer (os error 104), treating as normal closure");
}
Err(ref e) if e.kind() == std::io::ErrorKind::NotConnected => {
debug!("Connection reset by peer (os error 104), treating as normal closure");
}
Err(e) => {
error!("Stream error while handling tcp: {}", e);
}
}
});
Ok(())
}
async fn check_connection(&self) -> anyhow::Result<()> {
Ok(()) // Default implementation
}
}
- TLS Integration:
src/utils/tls.rs
pub fn load_tls_config(cert_path: &str, key_path: &str) -> anyhow::Result<ServerConfig> {
let certs = load_certs(cert_path)?;
let key = load_private_key(key_path)?;
let mut config = ServerConfig::builder()
.with_no_client_auth()
.with_single_cert(certs, key)?;
config.alpn_protocols = vec![HTTP_1_1.to_vec(), HTTP_2.to_vec(), ACME_TLS_ALPN_NAME.to_vec()];
Ok(config)
}
Security Considerations
The codebase implements several security features:
- TLS Configuration:
pub fn load_tls_config(cert_path: &str, key_path: &str) -> anyhow::Result<ServerConfig> {
let certs = load_certs(cert_path)?;
let key = load_private_key(key_path)?;
let mut config = ServerConfig::builder()
.with_no_client_auth()
.with_single_cert(certs, key)?;
config.alpn_protocols = vec![HTTP_1_1.to_vec(), HTTP_2.to_vec(), ACME_TLS_ALPN_NAME.to_vec()];
Ok(config)
}
- SNI Support:
src/streams/sni.rs
pub struct SniStream {
pub sni: String,
buffer: Cursor<Vec<u8>>,
pub stream: TcpStream,
}
impl SniStream {
pub fn new(sni: String, buffer: Vec<u8>, stream: TcpStream) -> Self {
SniStream {
sni,
buffer: Cursor::new(buffer),
stream,
}
}
pub fn get_stream(&mut self) -> &mut TcpStream {
&mut self.stream
}
}
Performance Optimization
The codebase includes several performance optimizations:
- Efficient Stream Management:
src/multiplexing/yamux.rs
type Item = Substream;
fn poll_next(mut self: Pin<&mut Self>, cx: &mut Context<'_>) -> Poll<Option<Self::Item>> {
match futures::ready!(Pin::new(&mut self.inner).poll_recv(cx)) {
Some(stream) => Poll::Ready(Some(Substream {
stream: stream.compat(),
_counter_guard: self.substream_counter.new_guard(),
})),
None => Poll::Ready(None),
}
}
}
- Connection Pooling:
src/handlers.rs
// Start the listener
handler.start_listener().await?;
let mut control = control.clone();
// Send the assigned port to the client
// Open a new Yamux stream to send the port
let mut yamux_stream = control.open_stream().await?;
// write ServerInfo
let stream_id = StreamId::generate();
let server_info =
ControlPacket::ServerInfo(stream_id, VERSION.to_string(), REGION.to_string());
let serialized = server_info.serialize();
yamux_stream.write_all(serialized.as_slice()).await?;
yamux_stream.flush().await?;
info!("tcp: Sent server info");
// wait for ServerInfoAck
let server_info_ack = wait_for_packet(&mut yamux_stream).await?;
match server_info_ack {
ControlPacket::ServerInfoAck(_) => {
info!("tcp: Received ServerInfoAck");
}
_ => {
error!("Unexpected packet type");
return Err(anyhow::anyhow!("Unexpected packet type"));
}
}
let control_packet = ControlPacket::PortAssignment(stream_id, assigned_port);
yamux_stream.write_all(&control_packet.serialize()).await?;
yamux_stream.flush().await?;
tokio::spawn(async move {
info!("tcp: Listening for ping");
loop {
let mut buffer = [0; 1024];
let n = yamux_stream.read(&mut buffer).await.unwrap();
if n == 0 {
error!("Connection closed");
break;
}
let packet = ControlPacket::deserialize(&buffer[..n]).unwrap();
match packet {
ControlPacket::Ping(_) => {
// reply with pong
let now_as_millis = std::time::SystemTime::now()
.duration_since(std::time::UNIX_EPOCH)
.unwrap()
.as_millis() as u64;
let pong_packet = ControlPacket::Pong(stream_id.clone(), now_as_millis);
let serialized = pong_packet.serialize();
info!("tcp: Sending pong {:?}", serialized);
yamux_stream.write_all(serialized.as_slice()).await.unwrap();
yamux_stream.flush().await.unwrap();
}
_ => {}
}
}
});
Technical Documentation
Error Handling
The codebase implements comprehensive error handling:
src/multiplexing/error.rs
#[derive(Debug, Error, Clone)]
pub enum YamuxControlError {
#[error("Yamux connection error: {0}")]
ConnectionError(String),
#[error("Yamux connection closed")]
ConnectionClosed,
#[error("Yamux request send error: {0}")]
RequestSendError(String),
#[error("Yamux request send error: {0}")]
RequestCanceled(#[from] Canceled),
}
Testing Strategies
The codebase includes extensive testing:
src/tests.rs
#[tokio::test]
async fn test_client_reconnection_performance() {
// println!("Running test");
const NUM_ITERATIONS: usize = 100;
println!("Running {} iterations", NUM_ITERATIONS);
let mut connection_times = Vec::with_capacity(NUM_ITERATIONS);
let domain = "test.localho.st";
for i in 0..NUM_ITERATIONS {
println!("Iteration {}", i);
let start_time = std::time::Instant::now();
// Create client config
let config = TunnelClientConfig {
protocol: TunnelProtocol::Tls,
server_address: "eu.tun.kfs.es:12345".to_string(),
// server_address: "127.0.0.1:12345".to_string(),
local_address: "127.0.0.1:3000".to_string(),
domains: vec![domain.to_string()],
};
let (shutdown_tx, shutdown_rx) = tokio::sync::oneshot::channel();
// Connect
let (status, management, open_rx) = run_tunnel_client(config.clone(), shutdown_rx)
.await
.unwrap();
// Record connection time
let connection_time = start_time.elapsed();
connection_times.push(connection_time);
// Disconnect
let _ = shutdown_tx.send(());
// wait until open_rx is false
while open_rx.borrow().clone() {
tokio::time::sleep(Duration::from_millis(10)).await;
}
// Wait for complete shutdown
tokio::time::sleep(Duration::from_millis(100)).await;
println!(
"Iteration {}: Connection time: {:?}",
i + 1,
connection_time
);
}
// Calculate and print statistics
let total_time: Duration = connection_times.iter().sum();
let avg_time = total_time / NUM_ITERATIONS as u32;
let max_time = connection_times.iter().max().unwrap();
let min_time = connection_times.iter().min().unwrap();
println!("\nPerformance Test Results:");
println!("Total iterations: {}", NUM_ITERATIONS);
println!("Average connection time: {:?}", avg_time);
println!("Maximum connection time: {:?}", max_time);
println!("Minimum connection time: {:?}", min_time);
// Optional: Assert that the average connection time is within acceptable bounds
assert!(
avg_time < Duration::from_secs(1),
"Average connection time too high"
);
}
Technical Conclusion
The codebase demonstrates a production-ready implementation of network tunneling using Rust and Yamux, featuring:
- Robust protocol handling for TCP, TLS, and HTTP(S)
- Comprehensive error handling and recovery
- Efficient stream multiplexing
- TLS support with SNI routing
- Extensive testing coverage
Future improvements could include:
- Enhanced metrics collection
- Additional protocol handlers
- Advanced compression support
- Distributed connection pooling
Technical FAQ
-
Q: How does the codebase handle TLS connections? A: Through the TLS handler implementation with SNI support and ALPN protocols.
-
Q: What protocols are supported? A: TCP, TLS, and HTTP(S) through dedicated protocol handlers.
-
Q: How is connection multiplexing managed? A: Using Yamux with configurable stream management and backpressure handling.
-
Q: How does error handling work? A: Through a comprehensive error handling system using custom error types and proper error propagation.
The implementation provides a robust foundation for building secure and efficient network tunnels in Rust.
